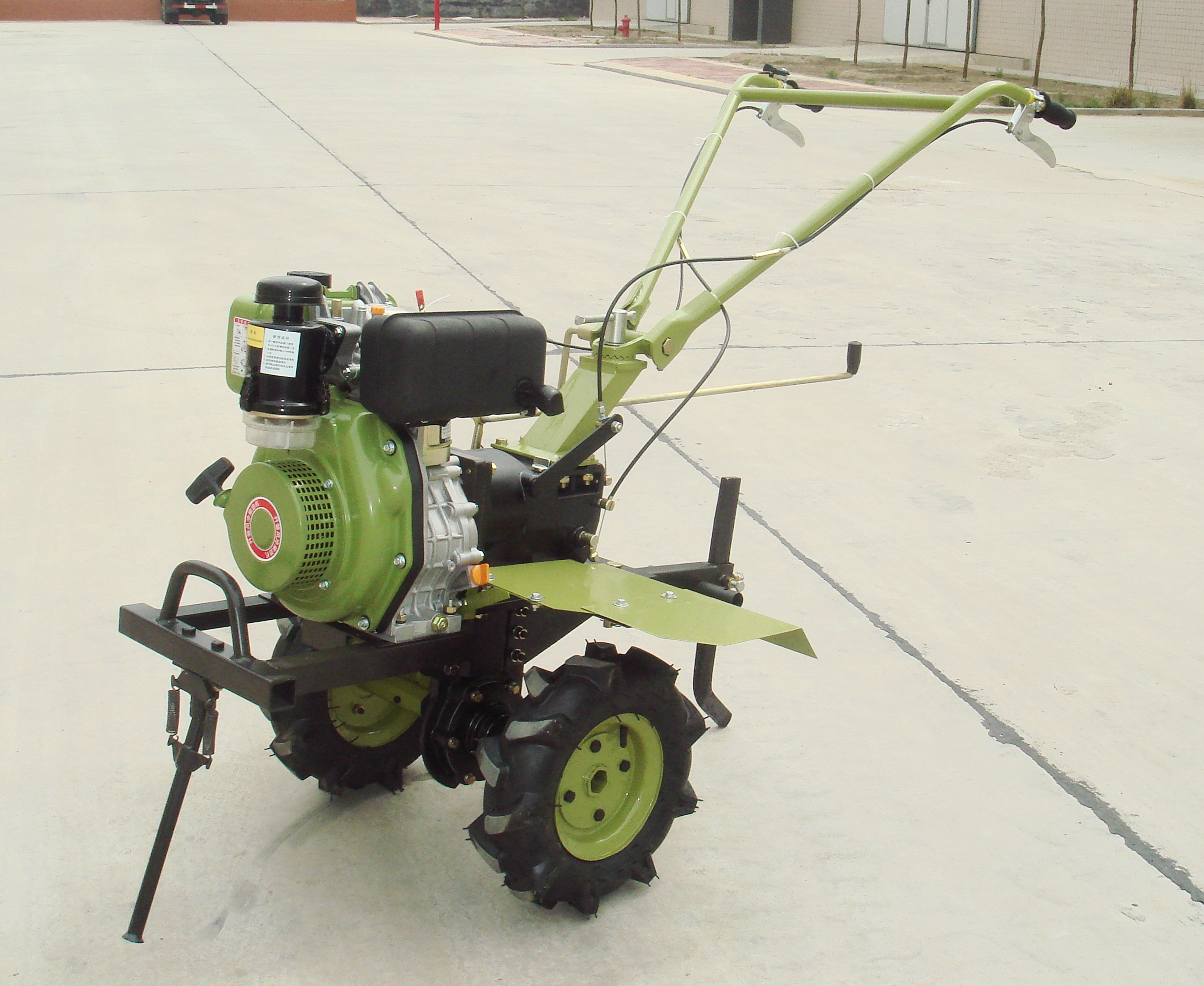

Tiller

Type

1WG-4-105 (with 178F diesel engine)

Overall dimension (mm)

1600*590*970

Tilling width (cm)

105

Tilling depth (cm)

10-30

Shifting

-1,0,1,2

Engine

Model

178F

Bore × Stroke (mm)

78×62

Displacement (ml)

296

Max. power (kw / rpm)

4.4/3600

Engine type

single-cylinder, 4-stroke, air-cooled, direct injection,

upright type

Starting mode

Recoil

Packing

Package dimension (mm)

1030×530×770

N.W. / G.W. (kg)

122/135

40HQ (set)

132-1/200-5
